Mirai DDoS malware variant expands targets with 13 router exploits

Security

Tuesday, 10 October 2023

941 Hits

A Mirai-based DDoS (distributed denial of service) malware botnet tracked as IZ1H9 has added thirteen new payloads to target Linux-based routers and routers from D-Link, Zyxel, TP-Link, TOTOLINK, and others.

Fortinet researchers report observing a peak in the exploitation rates around the first week of September, reaching tens of thousands of exploitation attempts against vulnerable devices.

IZ1H9 compromises devices to enlist them to its DDoS swarm and then launches DDoS attacks on specified targets, presumably on the order of clients renting its firepower.

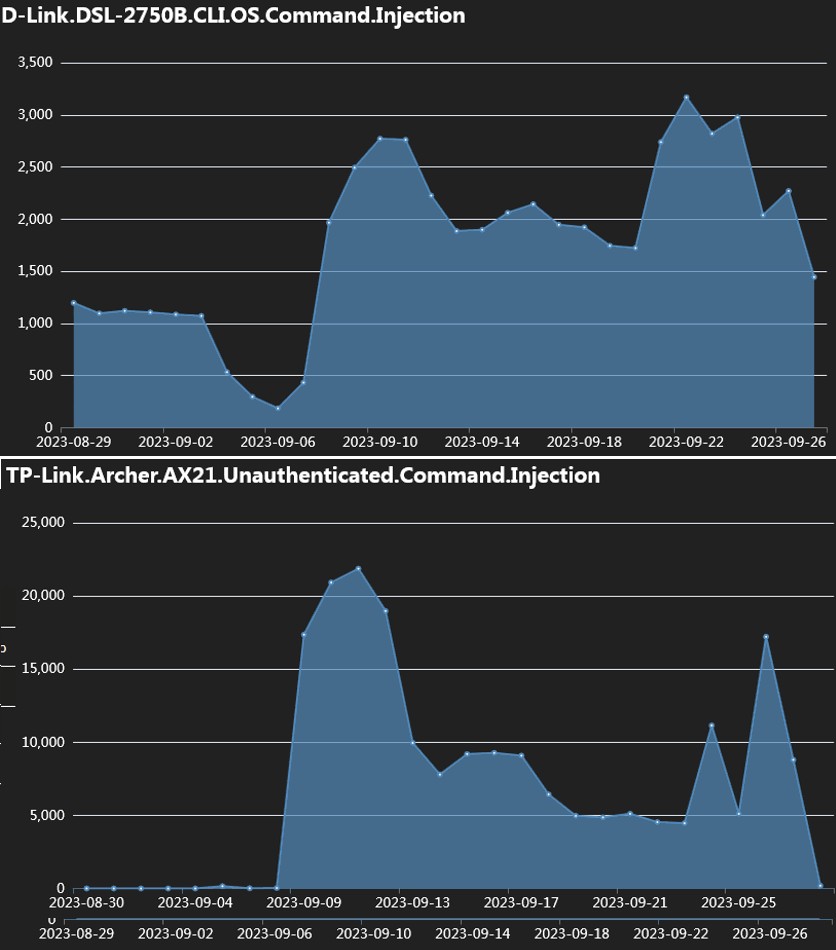

Observed exploitation attempts throughout September (Fortinet)

Extensive IoT targeting

The more devices and vulnerabilities targeted by a DDoS malware increased the potential to build a large and powerful botnet capable of delivering massive blows against websites.

In the case of IZ1H9, Fortinet reports it uses exploits for the following flaws, dating from 2015 to 2023:

D-Link devices: CVE-2015-1187, CVE-2016-20017, CVE-2020-25506, CVE-2021-45382
Netis WF2419: CVE-2019-19356
Sunhillo SureLine (versions before 8.7.0.1.1): CVE-2021-36380
Geutebruck products: CVE-2021-33544, CVE-2021-33548, CVE-2021-33549, CVE-2021-33550, CVE-2021-33551, CVE-2021-33552, CVE-2021-33553, CVE-2021-33554
Yealink Device Management (DM) 3.6.0.20: CVE-2021-27561, CVE-2021-27562
Zyxel EMG3525/VMG1312 (before V5.50): CVE not specified but targets the Zyxel device's /bin/zhttpd/ component vulnerability
TP-Link Archer AX21 (AX1800): CVE-2023-1389
Korenix JetWave wireless AP: CVE-2023-23295
TOTOLINK routers: CVE-2022-40475, CVE-2022-25080, CVE-2022-25079, CVE-2022-25081, CVE-2022-25082, CVE-2022-25078, CVE-2022-25084, CVE-2022-25077, CVE-2022-25076, CVE-2022-38511, CVE-2022-25075, CVE-2022-25083

The campaign also targets an unspecified CVE related to the "/cgi-bin/login.cgi" route, potentially affecting the Prolink PRC2402M router.

Attack chain

After exploiting one of the aforementioned CVEs, an IZ1H9 payload is injected into the device containing a command to fetch a shell script downloader named "l.sh" from a specified URL.

Upon execution, the script deletes logs to hide the malicious activity, and next, it fetches bot clients tailored for different system architectures.

Finally, the script modifies the device's iptables rules to obstruct connection on specific ports and make it harder to remove the malware from the device.

Having done all the above, the bot establishes communication with the C2 (command and control) server and waits for commands to execute.

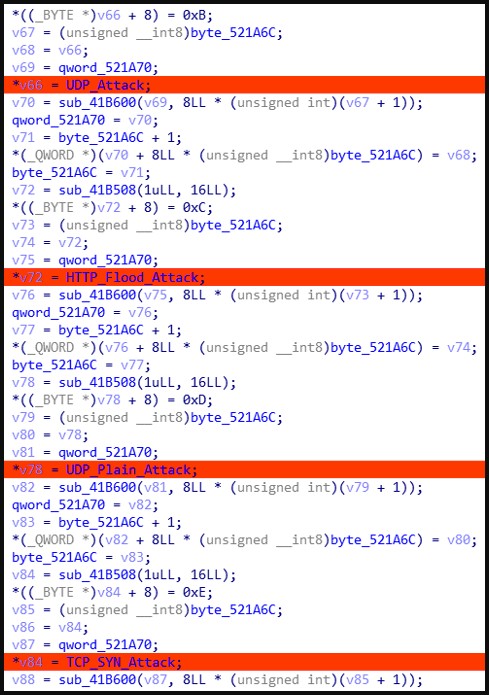

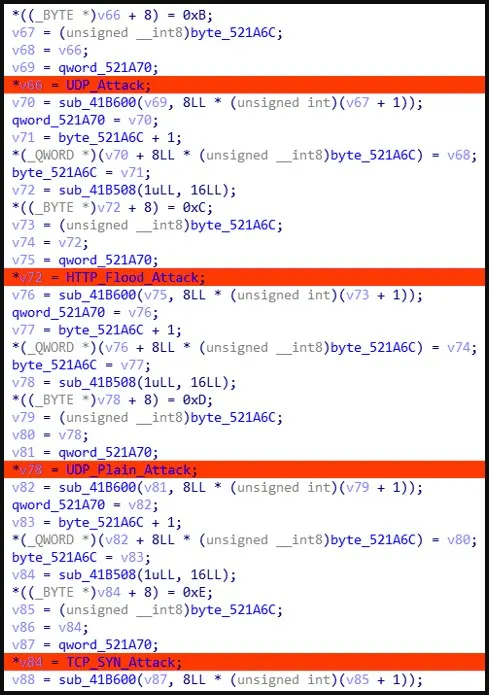

The supported commands concern the type of DDoS attack to launch, including UDP, UDP Plain, HTTP Flood, and TCP SYN.

DDoS commands (Fortinet)

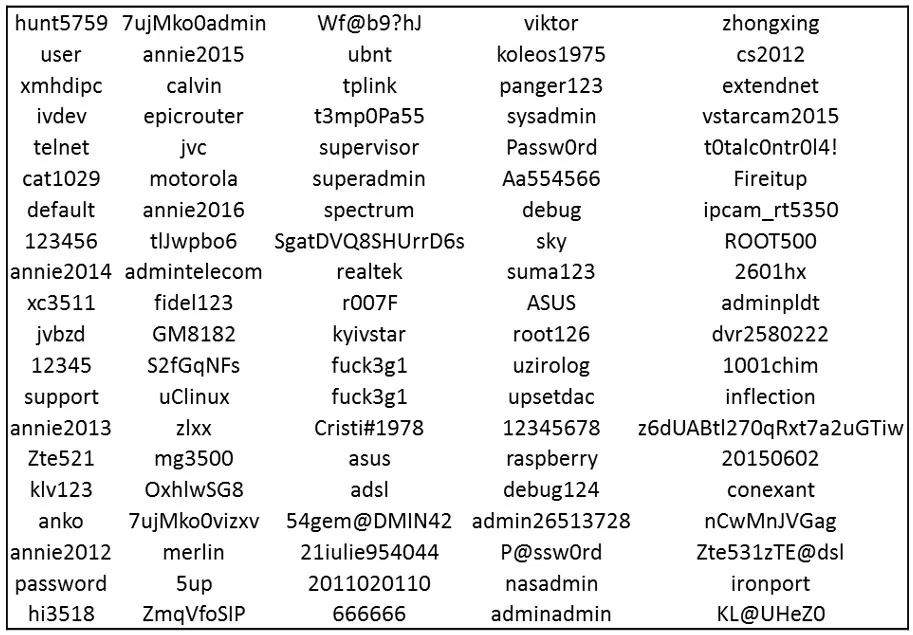

Fortinet also reports that IZ1H9 features a data section with hardcoded credentials used for brute-force attacks.

Hardcoded credentials (Fortinet)

These attacks might be helpful for propagation to adjacent devices or authenticating to IoTs for which it does not have a working exploit.

Owners of IoT devices are recommended to use strong admin user credentials, update them to the latest available firmware version, and, if possible, reduce their exposure to the public internet.
